UNIMA CABLE | HALOGEN-FREE BUILDING WIRES
H07Z-K – Halogen-Free Flexible Wire
Low-smoke, halogen-free single-core installation wire with fine-stranded copper conductor and cross-linked polyolefin insulation for protected wiring in buildings and electrical equipment.
Product Overview
H07Z-K is a halogen-free, flexible single-core wire for installation in conduits, pipes, enclosed cable ducts and electrical distribution equipment.
The conductor is bare copper, Class 5 fine-stranded, insulated with cross-linked halogen-free polyolefin compound EI5.
The wire is designed for locations where reduced smoke and halogen emissions are important, including public buildings, electrical switchboards and transport applications.
Key Technical Features
450/750 VRadni napon
90°CMax. Conductor Temperature
2.5 kVTest Voltage
EcaCPR Classification
Construction & Technical Properties

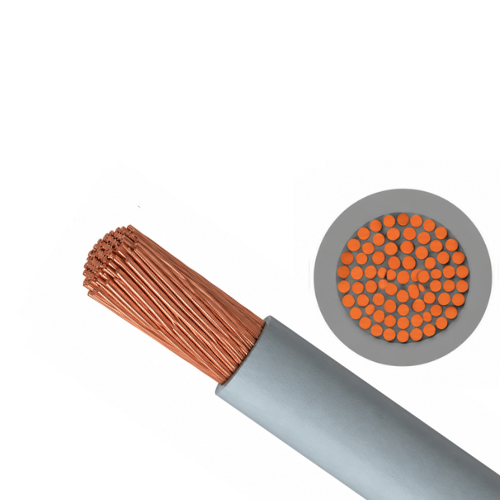

Wire Construction
ConductorBare Copper
Conductor ClassClass 5 Fine Stranded
InsulationCross-Linked Polyolefin EI5
Halogen-FreeIEC 60754
Low SmokeIEC 61034
Insulation ColoursAccording to Variant
Electrical & Mechanical Data
Radni napon450/750 V
Test Voltage2.5 kV
Maximum Conductor Temp.+90°C
Fixed Installation Temp.-5°C to +90°C
Minimum Bending Radius4 × Outer Diameter
Flame RetardanceIEC 60332-1-2
CPR ClassificationEca
Typical Applications
Electrical Distribution Boards
Building Installation Conduits
Enclosed Wiring Ducts
Public Buildings
Commercial Buildings
Internal Wiring of Electrical Equipment
Buses and Rail-Borne Vehicles
Locations Requiring Halogen-Free Wiring
Applicable Standards
DIN EN 50525-3-41 – Halogen-free thermosetting insulated wires.
DIN EN IEC 60228 – Class 5 copper conductors.
EN 50575 – CPR classification Eca.
IEC 60332-1-2 – Flame propagation.
IEC 61034 – Smoke density.
IEC 60754 – Halogen-free properties.
DIN EN IEC 60228 – Class 5 copper conductors.
EN 50575 – CPR classification Eca.
IEC 60332-1-2 – Flame propagation.
IEC 61034 – Smoke density.
IEC 60754 – Halogen-free properties.
Installation Notice: Designed for protected installation in pipes, conduits and enclosed wiring systems. Current-carrying capacities depend on installation conditions and must be selected according to applicable standards. CPR Eca does not imply circuit integrity or fire resistance.
Technical Data & Cable Dimensions
H07Z-K | Halogen-Free Flexible Wire | 450/750 V | EN 50525-3-41
60Manufacturer Variants
15Conductor Sizes
90°CMax. Conductor Temp.
EcaCPR Classification
| Part No. | Size / Colour | Conductor Ø mm |
Resistance Ω/km |
Insulation mm |
Air 30°C A |
Outer Ø mm |
Copper kg/km |
Weight kg/km |
|---|
| Source: Klaus Faber AG
Technical notes: Ampacity refers to air at 30°C under the manufacturer's reference conditions. Actual permissible current depends on installation. Outer diameters and weights are approximate. Colour codes: BK = Black, GN-YE = Green/Yellow, LBU = Light Blue, BN = Brown, DBU = Dark Blue, RD = Red, OG = Orange, GY = Grey. All weights are in kg/km.
