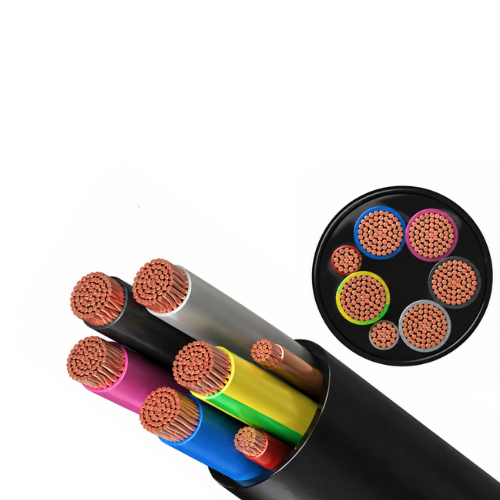

H07BZ5-F – EV Charging Cable
Flexible halogen-free charging cable with Class 5 copper conductors, pilot core and polyurethane outer sheath for electric vehicle charging in Mode 2 and Mode 3.
Product Overview
H07BZ5-F FLEXICS CHARGE EVC is a purpose-designed electric vehicle charging cable suitable for charging Mode 2 and Mode 3.
It incorporates fine-stranded bare copper conductors, halogen-free EVI-2 insulation, a dedicated pilot conductor with EVI-1 insulation, fleece core wrapping and a black polyurethane EVM-1 outer sheath.
The cable is intended for dry and damp areas as well as outdoor use. Its outer sheath offers resistance to UV radiation, oil and ozone.
Key Technical Features
450/750 VRadni napon
90°CMax. Conductor Temp.
250°CShort-Circuit Temp.
Mode 2/3EV Charging
Construction & Technical Properties
Cable Construction
Power ConductorsBare Copper, Class 5
Core InsulationHalogen-Free EVI-2
Pilot Conductor0.5 mm², EVI-1, White
Core WrappingFleece
Outer SheathPolyurethane EVM-1
Sheath ColourCrna
Electrical & Mechanical Data
Radni napon450/750 V
Test Voltage2.5 kV
Max. Conductor Temp.+90°C
Fixed Temperature-40°C to +90°C
Moving Temperature-35°C to +80°C
Fixed Bending Radius5 × Outer Diameter
Moving Bending Radius15 × Outer Diameter
Typical Applications
Mode 2 EV Charging
Mode 3 EV Charging
Electric Vehicle Charging Cables
Indoor Charging Applications
Outdoor Charging Applications
Dry and Damp Environments
Applicable Standards
EN 50620 – EV charging cable requirements.
IEC 62893 – EV charging cable series.
VDE 0285-620 – EV charging cable standard.
IEC 60332-1-2 – Flame propagation.
ISO 4892-2 – UV resistance testing.
IEC 60811-404 – Oil resistance.
IEC 60811-403 – Ozone resistance.
IEC 62893 – EV charging cable series.
VDE 0285-620 – EV charging cable standard.
IEC 60332-1-2 – Flame propagation.
ISO 4892-2 – UV resistance testing.
IEC 60811-404 – Oil resistance.
IEC 60811-403 – Ozone resistance.
Important: Current-carrying capacity must be assessed in accordance with EN 50620. The manufacturer's guidance states that the cable surface temperature should not exceed 50°C during use to minimise unwanted contact reactions.
Technical Data & Cable Dimensions
H07BZ5-F FLEXICS CHARGE EVC | 450/750 V | EN 50620
2Configurations
450/750 VRadni napon
90°CMax. Conductor Temp.
Mode 2/3Charging Modes
| Part No. | Configuration | Sheath | Resistance Ω/km |
Air 30°C A |
Outer Ø mm |
Copper kg/km |
Cable kg/km |
|---|---|---|---|---|---|---|---|
| 053733 | 5G2.5 + 0.5 | Crna | 7.98 | 20 | 12.7 | 130 | 222 |
| 053735 | 5G6 + 0.5 | Crna | 3.3 | 38 | 16.5 | 293 | 429 |
Showing 2 of 2 configurations | Source: Klaus Faber AG
Technical notes: The additional 0.5 mm² conductor is the pilot conductor. Resistance refers to the main power conductor. Current ratings are the manufacturer's reference values for air at 30°C and must be checked against EN 50620 and actual charging conditions. Cable diameters are approximate.
