Technical Specifications

FG16R16
Cable Type

Industrial, Construction & Power Distribution
Application

CEI 20-13 / IEC 60502-1
Standard

Details

Insulation Material G16 Rubber
Packaging Wooden Drums
Availability Stock

Conductor Class Class 5 Flexible
Insulation G16 Rubber
Outer Sheath R16 PVC
Max. Operating Temperature 90°C
Max. Short-Circuit Temperature 250°C
Minimum Laying Temperature -15°C
Minimum Bending Radius 6 × D

Conductor Material Copper
Cable Group Power cables 1 - 30 kV
Insulation Material G16 Rubber
Rated Voltage 0.6/1 kV
CPR Class Cca-s3,d1,a3
Standard CEI 20-13 / IEC 60502-1

FG16R16 · FLEXIBLE POWER CABLE

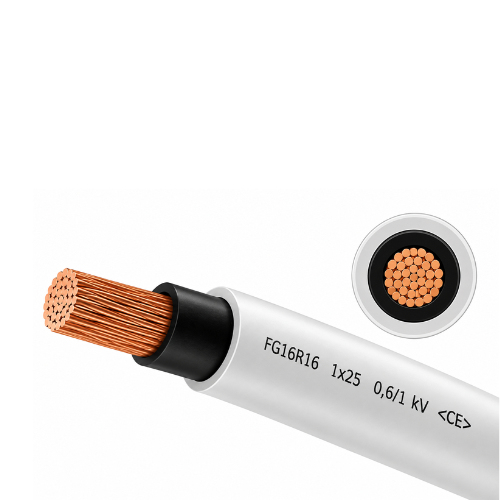

FG16R16 Flexible Copper Power Cable

FG16R16 is a 0.6/1 kV power cable with flexible Class 5 copper conductor, G16 rubber insulation and R16 PVC outer sheath. It is designed for reliable energy supply in industrial, commercial and construction applications.

Suitable for fixed wiring indoors and outdoors, including wet environments, as well as direct and indirect underground installation. FG16R16 can also be installed in open air, on walls, metal structures, cable trays, pipes and similar cable support systems.

0.6/1 kV Rated Voltage

Class 5 Cu Conductor

G16 Rubber Insulation

R16 PVC Outer Sheath

Cca-s3,d1,a3 CPR Class

Construction

Cu / G16 Rubber / R16 PVC

Conductor

Flexible copper conductor, Class 5 according to EN 60228

Insulation

G16 quality rubber compound

Outer Sheath

R16 quality PVC compound

Sheath Colour

Grey · other colours available on request

Technical Data

Electrical, thermal and installation characteristics

Rated Voltage U₀/U 0.6/1 kV

Test Voltage 4 kV

CPR Classification Cca-s3,d1,a3

Maximum Conductor Temperature 90°C

Maximum Short-Circuit Temperature 250°C

Minimum Laying Temperature -15°C

Minimum Bending Radius 6 × D

Conductor Class Class 5

Standards

Applicable cable and conductor standards

CEI 20-13 Power cable reference standard

IEC 60502-1 Power cables with extruded insulation

EN 60228 Class 5 copper conductor

HD 308 S2 Core identification

Applications

Flexible power distribution for demanding installations

Industrial Installations Suitable for energy supply and fixed power distribution in industrial installations.

Construction Suitable for building sites and construction industry power installations.

Indoor & Outdoor Suitable for fixed wiring indoors and outdoors, including wet environments.

Underground Installation Suitable for direct and indirect underground cable installation.

Cable Trays & Structures Suitable for installation on walls, metal structures, cable trays, pipes and cable support systems.

Fire-Risk Environments CPR Cca-s3,d1,a3 cable suitable for bundle installations in environments at risk of fire.

FG16R16 · 0.6/1 kV · Cca-s3,d1,a3 Available in a wide range of single-core conductor cross-sections. Cable dimensions, weight and permissible current depend on the selected conductor size and installation conditions.

FG16R16 · 0.6/1 kV

Dimensions & Technical Data

Standard single-core FG16R16 cable sizes with conductor resistance, insulation and sheath thickness, current carrying capacity, outer diameter and approximate cable weight.

Single Core

FG16R16 · Flexible Class 5 copper conductor · G16 insulation · R16 sheath

Cross Section mm²	Resistance 20°C Ω/km	Insulation mm	Sheath mm	In Air 30°C A	Pipe in Air 30°C A	Buried K=1 A	Buried K=1.5 A	Buried Pipe K=1 A	Buried Pipe K=1.5 A	Outer Ø mm	Cable Weight kg/km
1×1.5	13.3	0.7	1.4	24	20	26	24	23	21	8.2	55
1×2.5	7.98	0.7	1.4	33	28	34	31	29	27	8.7	66
1×4	4.95	0.7	1.4	45	37	43	40	38	35	9.3	84
1×6	3.30	0.7	1.4	58	48	55	51	48	44	9.9	110
1×10	1.91	0.7	1.4	80	66	73	68	64	59	10.9	150
1×16	1.21	0.7	1.4	107	88	96	89	83	77	11.4	220
1×25	0.780	0.9	1.4	141	117	124	115	108	100	13.2	310
1×35	0.554	0.9	1.4	176	144	150	139	131	121	14.6	410
1×50	0.386	1.0	1.4	216	175	186	173	162	150	16.4	560
1×70	0.272	1.1	1.4	279	222	229	212	199	184	18.3	760
1×95	0.206	1.1	1.5	342	269	270	250	234	217	20.4	960
1×120	0.161	1.2	1.5	400	312	312	289	271	251	22.4	1210
1×150	0.129	1.4	1.6	464	355	356	330	310	287	24.8	1480
1×185	0.106	1.6	1.6	533	417	401	371	349	323	27.2	1790
1×240	0.0801	1.7	1.7	634	490	471	436	409	279	30.4	2320
1×300	0.0641	1.8	1.8	736	–	533	493	463	429	33.0	2840
1×400	0.0486	2.0	1.9	868	–	621	575	540	500	37.7	3735
1×500	0.0384	2.2	2.1	998	–	705	650	610	560	43.6	4660

Need another configuration? Additional FG16R16 cable configurations may be available on request. Contact UNIMA CABLE with the required conductor size, quantity and project specification.

Technical note Permissible current ratings are based on a three-phase circuit. Buried cable values are based on a laying depth of 0.8 m. K = 1 corresponds to ground thermal resistivity of 1.0 K·m/W and K = 1.5 corresponds to 1.5 K·m/W. Cable dimensions and weights are approximate.
