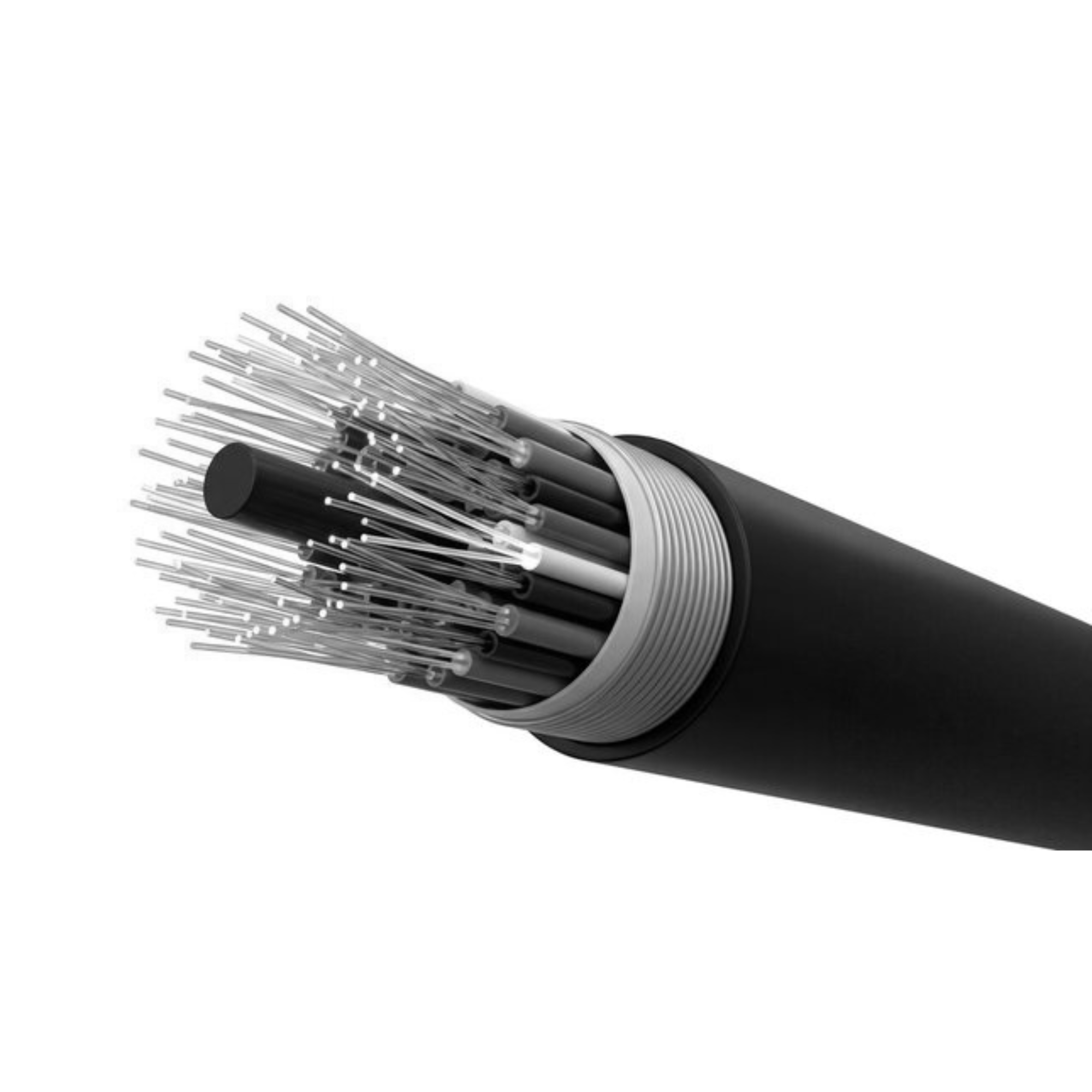

Fibre optic cables: 1 Property

Fire Performance Cables: 3 Properties

Flexible wires: 5 Properties

Instrumentation Cables: 2 Properties

Photovoltaic: 1 Property

Power cables 1 - 30 kV: 15 Properties

Technical Specifications

NYCY
Cable Type

Fixed Installation – Indoor, Outdoor, Underground, Water & Concrete
Application

VDE 0276-603 | VDE 0276-627 (≥ 5 cores)
Standard

Details

Insulation Material PVC DIV 4
Packaging Wooden Drum | Steel Drum | Customer-specific lengths available
Availability Stock

Colour: Black
Available Core Configurations: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 21, 24, 30, 40, 52, 61 Cores
Available Cross Sections: 1.5 mm² to 16 mm²
Minimum Bending Radius: 12 × Cable Diameter
Rated Voltage 0.6/1 kV
Test Voltage 4 kV
Installation Indoor, Outdoor, Underground, Water & Concrete
Flame Retardance IEC 60332-1-2
CPR Classification Eca (Catalogue Classification)

Conductor Material Bare Copper, Class 1; Class 2 from 25 mm²
Cable Group Power cables 1 - 30 kV
Insulation Material PVC DIV 4
Rated Voltage 0.6/1 kV
CPR Class Eca
Standard VDE 0276-603 | VDE 0276-627 (≥ 5 cores)

NYCY is a 0.6/1 kV copper power cable with PVC insulation and a concentric copper conductor, designed for fixed installations in industrial plants, commercial buildings, utility networks, and infrastructure projects.The concentric conductor provides an integrated protective earth (PE) and neutral function, making NYCY ideal where enhanced electrical safety and fault current protection are required.

Suitable for installation indoors, outdoors, in cable ducts, underground (with additional protection), and in concrete.

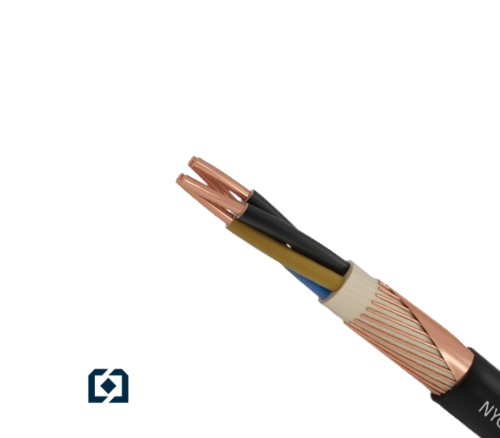

NYCY · POWER CABLE WITH CONCENTRIC COPPER CONDUCTOR

NYCY Copper Power Cable with Concentric Conductor

NYCY is a 0.6/1 kV power cable with copper conductors, PVC insulation, a concentric copper conductor and PVC outer sheath.

Designed for fixed power distribution installations where the concentric copper conductor can be used as a protective, neutral or combined protective and neutral conductor, depending on the installation design and applicable requirements.

0.6/1 kV Rated Voltage

Copper Conductor

PVC Insulation

Cu Concentric Conductor

PVC Outer Sheath

Construction

CU / PVC / CONCENTRIC CU / PVC

Conductor

Copper conductor, Class 1 or Class 2 depending on cross-section

Insulation

PVC insulation compound

Core Assembly

Insulated conductors laid up to form the cable core

Concentric Conductor

Concentric copper wires arranged around the cable core

Outer Sheath

PVC outer sheath

Rated Voltage

0.6/1 kV

Technical Data

Electrical and installation characteristics

Rated Voltage U₀/U 0.6/1 kV

Conductor Material Copper

Conductor Class Class 1 / Class 2

Insulation PVC

Concentric Conductor Copper

Outer Sheath PVC

CPR Classification Eca

Standards

Applicable cable standards

VDE 0276-603 Power cable construction and requirements

VDE 0276-627 Applicable to specified multicore constructions

Applications

Fixed low-voltage power distribution

Power Distribution Suitable for fixed low-voltage power distribution installations.

Industrial Installations Suitable for power supply and distribution in industrial installations.

Building Infrastructure Suitable for fixed electrical installations in building infrastructure.

Underground Installation Suitable for underground installation under appropriate installation conditions.

Cable Ducts Suitable for installation in cable ducts and fixed distribution systems.

Concentric Conductor Integrated concentric copper conductor for protective or neutral conductor functions.

NYCY · CU/PVC/CONCENTRIC CU/PVC Available in multiple conductor configurations and cross-sections. The value after “/” indicates the cross-section of the concentric copper conductor. Cable dimensions, weights and current ratings depend on the selected cable configuration.

NYCY · 0.6/1 kV

Dimensions & Technical Data

2 Core 3 Core 4 Core 5 Core 7 Core 10–16 Core 19–61 Core

2 Core

Configuration mm²	Resistance Ω/km @ 20°C	Insulation mm	Ampacity Air 30°C · A	Ampacity Ground 20°C · A	Overall Ø approx. mm	Copper Weight kg/km	Net Weight kg/km
2 × 1.5 / 1.5	12.1	0.8	19	27	13.0	52	200
2 × 2.5 / 2.5	7.41	0.8	26	36	13.6	80	260
2 × 4 / 4	4.61	1.0	34	47	15.4	123	350
2 × 6 / 6	3.08	1.0	44	59	16.9	182	430
2 × 10 / 10	1.83	1.0	60	79	18.5	312	520
2 × 16 / 16	1.15	1.0	80	102	20.5	489	720

3 Core

Configuration mm²	Resistance Ω/km @ 20°C	Insulation mm	Ampacity Air 30°C · A	Ampacity Ground 20°C · A	Overall Ø approx. mm	Copper Weight kg/km	Net Weight kg/km
3 × 1.5 / 1.5	12.1	0.8	19	27	13.2	66	220
3 × 2.5 / 2.5	7.41	0.8	26	36	14.2	104	280
3 × 2.5 / 10	7.41	0.8	26	36	14.4	192	359
3 × 4 / 4	4.61	1.0	34	47	16.3	161	390
3 × 6 / 6	3.08	1.0	44	59	17.3	240	500
3 × 10 / 10	1.83	1.0	60	79	20.0	408	680
3 × 16 / 16	1.15	1.0	80	102	23.0	643	1010

4 Core

Configuration mm²	Resistance Ω/km @ 20°C	Insulation mm	Ampacity Air 30°C · A	Ampacity Ground 20°C · A	Overall Ø approx. mm	Copper Weight kg/km	Net Weight kg/km
4 × 1.5 / 1.5	12.1	0.8	19	27	14.2	81	250
4 × 2.5 / 2.5	7.41	0.8	26	36	15.3	128	340
4 × 4 / 4	4.61	1.0	34	47	17.3	200	460
4 × 6 / 6	3.08	1.0	44	59	18.4	297	580
4 × 10 / 10	1.83	1.0	60	79	21.0	504	765
4 × 16 / 16	1.15	1.0	80	102	23.0	796	1060

5 Core

Configuration mm²	Resistance Ω/km @ 20°C	Insulation mm	Ampacity Air 30°C · A	Ampacity Ground 20°C · A	Overall Ø approx. mm	Copper Weight kg/km	Net Weight kg/km
5 × 1.5 / 1.5	12.1	0.8	19	27	15.0	95	330
5 × 2.5 / 2.5	7.41	0.8	26	36	16.0	152	400
5 × 4 / 4	4.61	1.0	34	47	19.0	238	550
5 × 6 / 6	3.08	1.0	44	59	21.0	355	700

7 Core

Configuration mm²	Resistance Ω/km @ 20°C	Insulation mm	Ampacity Air 30°C · A	Ampacity Ground 20°C · A	Overall Ø approx. mm	Copper Weight kg/km	Net Weight kg/km
7 × 1.5 / 2.5	12.1	0.8	19	27	15.3	133	350
7 × 2.5 / 2.5	7.41	0.8	25	36	17.4	200	450
7 × 4 / 4	4.61	1.0	34	47	20.0	315	600
7 × 6 / 6	3.08	1.0	43	59	22.5	470	790
7 × 10 / 10	1.83	1.0	60	79	25.0	792	1320

10–16 Core

Configuration mm²	Resistance Ω/km @ 20°C	Insulation mm	Ampacity Air 30°C · A	Ampacity Ground 20°C · A	Overall Ø approx. mm	Copper Weight kg/km	Net Weight kg/km
10 × 1.5 / 2.5	12.1	0.8	19	27	18.4	176	410
10 × 2.5 / 4	7.41	1.0	25	36	20.4	286	600
10 × 4 / 6	4.61	0.8	34	47	23.5	451	900
12 × 1.5 / 2.5	12.1	0.8	19	27	19.4	205	470
12 × 2.5 / 4	7.41	0.8	25	36	20.5	334	660
12 × 4 / 6	4.61	1.0	34	47	24.5	528	1060
14 × 1.5 / 2.5	12.1	0.8	19	27	20.4	234	520
14 × 2.5 / 6	7.41	0.8	25	36	21.5	403	750
16 × 1.5 / 4	12.1	0.8	19	27	20.0	276	620
16 × 2.5 / 6	7.41	0.8	25	36	22.5	451	800

19–61 Core

Configuration mm²	Resistance Ω/km @ 20°C	Insulation mm	Ampacity Air 30°C · A	Ampacity Ground 20°C · A	Overall Ø approx. mm	Copper Weight kg/km	Net Weight kg/km
19 × 1.5 / 4	12.1	0.8	19	27	22.5	320	660
19 × 2.5 / 6	7.41	0.8	25	36	23.5	523	940
19 × 4 / 10	4.61	1.0	34	47	27.1	850	1376
21 × 1.5 / 6	12.1	0.8	19	27	23.0	369	790
24 × 1.5 / 6	12.1	0.8	19	27	25.5	413	850
24 × 2.5 / 10	7.41	0.8	25	36	27.6	696	1150
24 × 4 / 10	4.61	1.0	34	47	32.3	1042	1813
30 × 1.5 / 6	12.1	0.8	19	27	26.5	499	1020
30 × 2.5 / 10	7.41	0.8	25	36	29.5	840	1600
40 × 1.5 / 10	12.1	0.8	19	27	30.0	696	1280
40 × 2.5 / 10	7.41	0.8	25	36	33.0	1080	1660
52 × 1.5 / 10	12.1	0.8	19	27	32.0	869	1600
52 × 2.5 / 10	7.41	0.8	25	36	35.0	1368	2000
61 × 1.5 / 10	12.1	0.8	19	27	33.0	998	2000
61 × 2.5 / 10	7.41	0.8	25	36	36.0	1584	2280

Need another configuration?

Additional NYCY conductor configurations and cross-sections are available on request. Contact UNIMA CABLE with the required size, quantity and delivery location.

Technical note

The value after “/” indicates the cross-section of the concentric copper conductor. Outer diameters and weights are approximate. Current ratings depend on installation conditions and applicable correction factors. Technical values should be confirmed for the selected cable configuration before final project design.
